Description

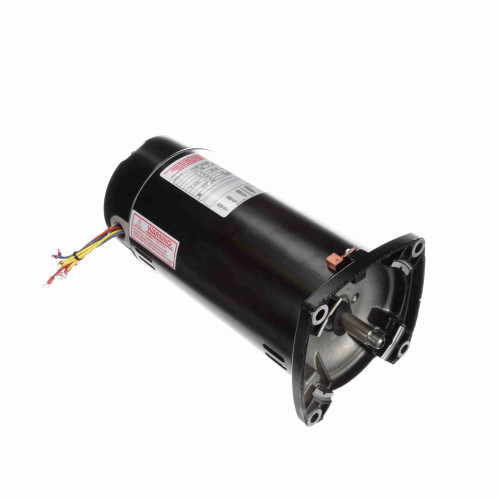

This economical motor is something that will ease your work. The 2HP 3PH motor with not much noise will be an ideal accessory. The smoothness of the engine is an added advantage.
Product Features:
Stainless steel shaft for corrosion protection
All copper windings
Sealed ball bearings
Jet Pump
Pump motor has a threaded shaft that allows for convenient and direct mounting
Open drip proof design allows air to circulate through the windings
Additional Features:
Output HP: 2 HP
Frequency: 60 Hz
Current: 8.5/4.25 A
Service factor: 1.3
Output KW: 1.5 kW
Voltage: 208-230/460 V
Speed: 3450 rpm
Poles: 2
Phase: 3
Insulation class: B
Mounting: round
Drive end bearing: ball
Enclosure: open drip proof
Ambient temperature: 50°C
Frame: 48Y
Thermal protection: none
Motor orientation: horizontal
Electrical type: polyphase
Rotation: counter clockwise pump end
Dimensions:
Shaft diameter: 0.625"
Shaft extension: 0.906"
Frame length: 9.44"
Material(s): stainless steel
Frame material: rolled steel
Product Features:
Stainless steel shaft for corrosion protection
All copper windings
Sealed ball bearings
Jet Pump
Pump motor has a threaded shaft that allows for convenient and direct mounting
Open drip proof design allows air to circulate through the windings
Additional Features:
Output HP: 2 HP
Frequency: 60 Hz
Current: 8.5/4.25 A
Service factor: 1.3
Output KW: 1.5 kW
Voltage: 208-230/460 V
Speed: 3450 rpm
Poles: 2
Phase: 3
Insulation class: B
Mounting: round
Drive end bearing: ball
Enclosure: open drip proof
Ambient temperature: 50°C
Frame: 48Y
Thermal protection: none
Motor orientation: horizontal
Electrical type: polyphase
Rotation: counter clockwise pump end
Dimensions:
Shaft diameter: 0.625"
Shaft extension: 0.906"
Frame length: 9.44"
Material(s): stainless steel
Frame material: rolled steel
Product Specifications
Weight | Width | Height | Depth |
---|---|---|---|
26.70 LBS | 9.25" | 9.50" | 19.00" |
